Titanium Connectors
Connection of the anode and distributor systems are one of the most common causes of failure of cathodic protection systems for reinforced concrete. The following is a comprehensive array of titanium connectors suited to all concrete repairs using electrochemical techniques.

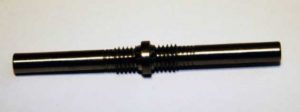

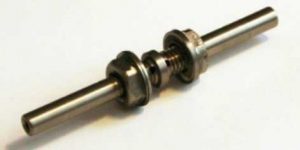

Titanium Tubular Cable Lugs
1.2mm diameter Ti to
1.2mm diameter TI
1.2mm diameter Ti
to 1.2mm diameter TI
1.2mm diameter Ti
to 1.2mm diameter TI
1.2mm diameter Ti
to 1.2mm diameter TI
1.2mm diameter Ti
to 1.2mm diameter TI
No 1.500.011
In concrete
No 1.500.013
In concrete
No 1.500.015
In concrete
No 1.500.017
Outside concrete
No 1.500.019
Outside concrete

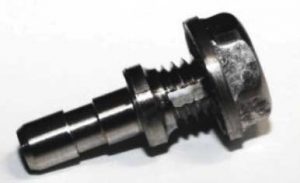

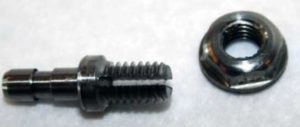

Titanium Connector for 1.2mm Diameter Titanium Wire
To Titanium Conductor Bar
No 1.500.100

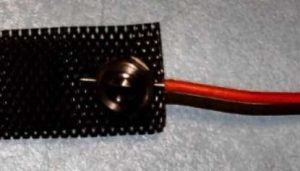

To Titanium Heavy Mesh
No 1.500.100
Several 1.2 feeder wires can be connected to the distributor which is fastened to the concrete with a Rawl plug
Titanium Connector for 2.5mm Copper Wire

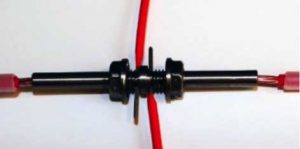

2 x 2.5mm2 Copper Wires to 2 x 1.2mm diameter Titanium Wires
No 1.500.100 – Used where distance between feeder wires is large
To Titanium Conductor Bar
No 1.500.150 – Outside concrete copper is more cost effective

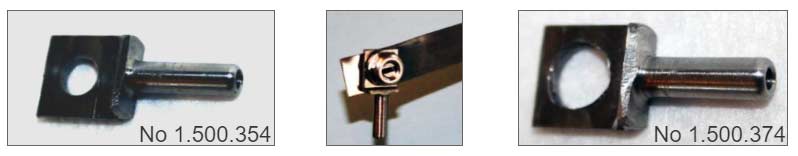

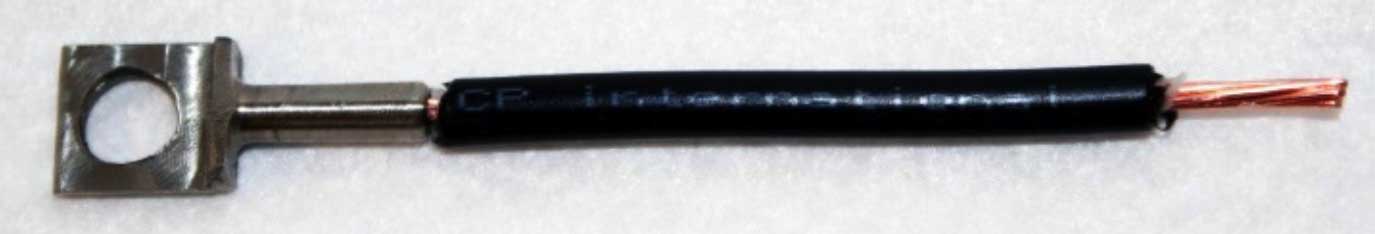

Titanium Tubular Cable Lug for 1.2mm Diameter Titanium or 2.5mm2 Copper Wire Connection To Conductor Bar or Grid
With 5.4mm Diameter Hole
With 7.4mm Diameter Hole

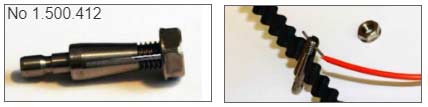

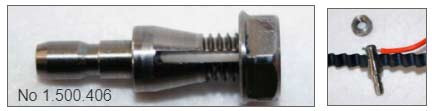

Titanium Connector for 1.2mm Diameter Titanium Wire and Sawtooth Ribbon Anode
With 6.35mm Wide Ribbon
With 12.7mm Wide Ribbon
A titanium nut is used to fasten the wire to the fastener which is fastened to the concrete with a Rawl plug
durAhub Connector
- 2 Ti Pins for copper cable
- 55mm heat shrink for sealing copper cable
- 8 Ti pins to connect Ti wires
- Plastic clamp wit SS screw and Rawl plug for mounting
No 1.500.500
