Tools for CP
As with most concrete repair procedures the job is made easier if the correct tools are available. A series of tools have been developed specifically for the application of cathodic protection.
durAnode4 Torque screwdriver
The torque screwdriver is sold separately to the durAspanner and hexbit. The screwdriver is used to tighten the pin in durAnode4 down onto the titanium feeder wire. The screwdriver has a set torque that is designed to ensure that the titanium pin penetrates the sheath of the titanium wire in exactly the same way every time to ensure a perfect connection without exposure of the titanium wire. This prevents leakage of the current from the wire which is embedded in the concrete.

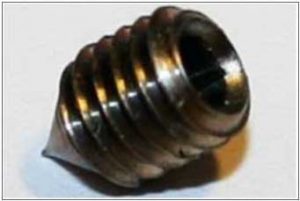

durAnode4 Pin
No 1.300.200
Spare pin used to fasten cables to the top of durAnode4.
Titanium Nut
No 1.300.210
M6 nut used with several of the titanium connectors.

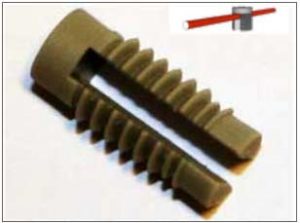

Cable Holder
No 1.300.190
A holder is drilled and the cable holder inserted to hold wires.

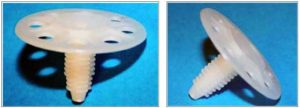

Grid Anode Holder
No 1.300.180
The grid is fastened to the nylon fixture and the pin on the nylon fixture tapped into the concrete.
Syringe
Used to inject the proprietary grout into durAnode4 Vertical.
No 1.400.500
Hole Punch
7.5mm diameter hole puncher to punch holes in titanium conductor bar.
No 1.300.170
Conductor Bar
Titanium conductor bar is 12.5mm wide x 1mm thick.
No 1.300.160
Wera 855/4 IMP
Diamond covered hex bit PZ2 x 50mm. Used for fastening the stainless steel screw in the white clamp that fixes the durAhub.
No 1.300.140
durAdunk
Tool used for fitting the interference plug on the durAnode4 vertical.
No 1.300.150
